C5000 ATC
The C5000 builds on the success of Oriux’s Advanced Traffic Controller, which has been installed in over thirty thousand intersections worldwide and is powered by their renowned software, GREENWave — a powerful, Linux-based, multiprocess traffic application.
The C5000 combines a fully NTCIP-compliant traffic controller, an integrated MMU that is fully compliant with FYA monitoring, high-density load switches that provide up to 32 channels of operation, and much more in a single unit.
The C5000 combines a fully NTCIP-compliant traffic controller, an integrated MMU that is fully compliant with FYA monitoring, high-density load switches that provide up to 32 channels of operation, and much more in a single unit.

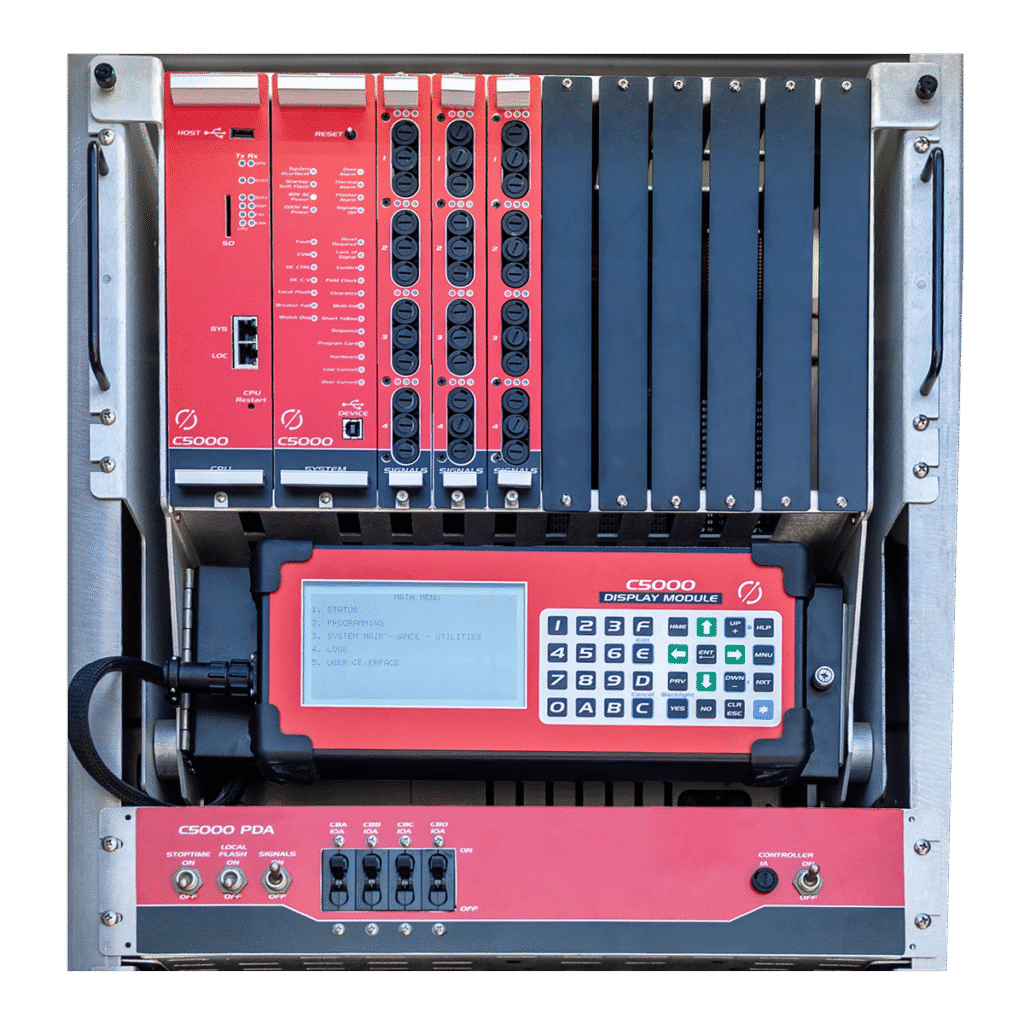

C5000 Intersection Control System
The C5000 builds on the success of Oriux’s Advanced Traffic Controller, which is installed in over 30,000 intersections worldwide. Powered by the renowned GREENWave software—a robust Linux-based multiprocess traffic application—the C5000 offers a comprehensive and compact traffic control solution. It integrates a fully NTCIP-compliant traffic controller, an integrated MMU—compliant with FYA monitoring, and high-density load switches providing up to 32 output channels, all housed within a single unit.Compact and Compatible Design
Designed to fit a standard 19-inch rack but standing only 17 inches tall, the C5000 is ideal for Central Business Districts (CBD) or downtown areas where space is limited. Its rack configuration allows compatibility with both NEMA and CALTRANS cabinet enclosures. Additionally, the C5000 supports current monitoring and is available in both 110V and 220V configurations to suit various power requirements.Ready for Future ITS Applications
The C5000 Intersection Control System is built with future Intelligent Transportation System (ITS) applications in mind. It offers versatile programming options, including remote or on-site setup via PC, Mac, mobile devices, a detachable keyboard and display, or through an NTCIP central system. Its CPU features a standard web-based interface accessible from any modern browser, providing an industry-leading user experience that adapts to how you want to operate.Programmable CPU and User Interface
The system features an ATC-based CPU that can be programmed either via a convenient web interface or through a detachable display panel. This flexibility allows users to configure and monitor the controller using their preferred method.Compact Rack-Mounted Design
Designed to fit a standard 19-inch rack, the unit offers a compact form factor that conserves valuable space without compromising on capability. With this in mind, it ideal for environments where space is limited.High-Density Load Switching and Safety
Equipped with high-density load switches, the controller supports up to 32 output channels. In addition, integrated fuses within these load switches enhance safety by protecting individual circuits from overloads.Communication and Monitoring Capabilities
The device complies fully with NTCIP communications protocols, ensuring seamless integration with modern traffic management systems. It includes a single display keyboard for both controller operations and safety monitoring, as well as current and voltage monitoring features to maintain optimal system performance.Flexible Power Input Options
Configurable opto inputs allow operation at either 110V or 220V, accommodating different power supply requirements with ease.Reliable and Efficient Design
A PCB back panel ensures consistent and reliable performance. The system also supports SDLC-based detection, providing accurate and efficient vehicle detection capabilities.Companion Units and Circuit Protection
The controller includes a rack-mounted companion Power Distribution and Signal Unit (PDSU). The card-based load switches with current monitoring and fused outputs are provided for each circuit. This includes Red, Yellow, and Green signals, ensuring comprehensive circuit protection.TECHNICAL DETAILS
- The Oriux C5000 ATC is 19″ X 17.5″ X 10.5″ (Dimensions are for Unit only)
- Power: 89 to 265 VAC (50/60 Hz)
- ATC-based CPU Programmable via web interface or detachable display panel
- Standard 19″ rack-mounted
- High-density load switches provide up to 32 channels of outputs
- Fuses are built into load switches for increased safety
- Compliant with NTCIP communications protocols
- Single display keyboard for controller and safety monitor
- C5000 ATC offers current and voltage monitoring
- Allows 220V or 110V Opto inputs (configurable)
- Reduced real estate, increased capability
- PCB back panel – more consistent & more reliable product
- Supports SDLC-based detection
- Rack-mounted companion PDSU
- Card-based load switches w/ current monitoring and fused outputs for each circuit (R, Y, and G)
