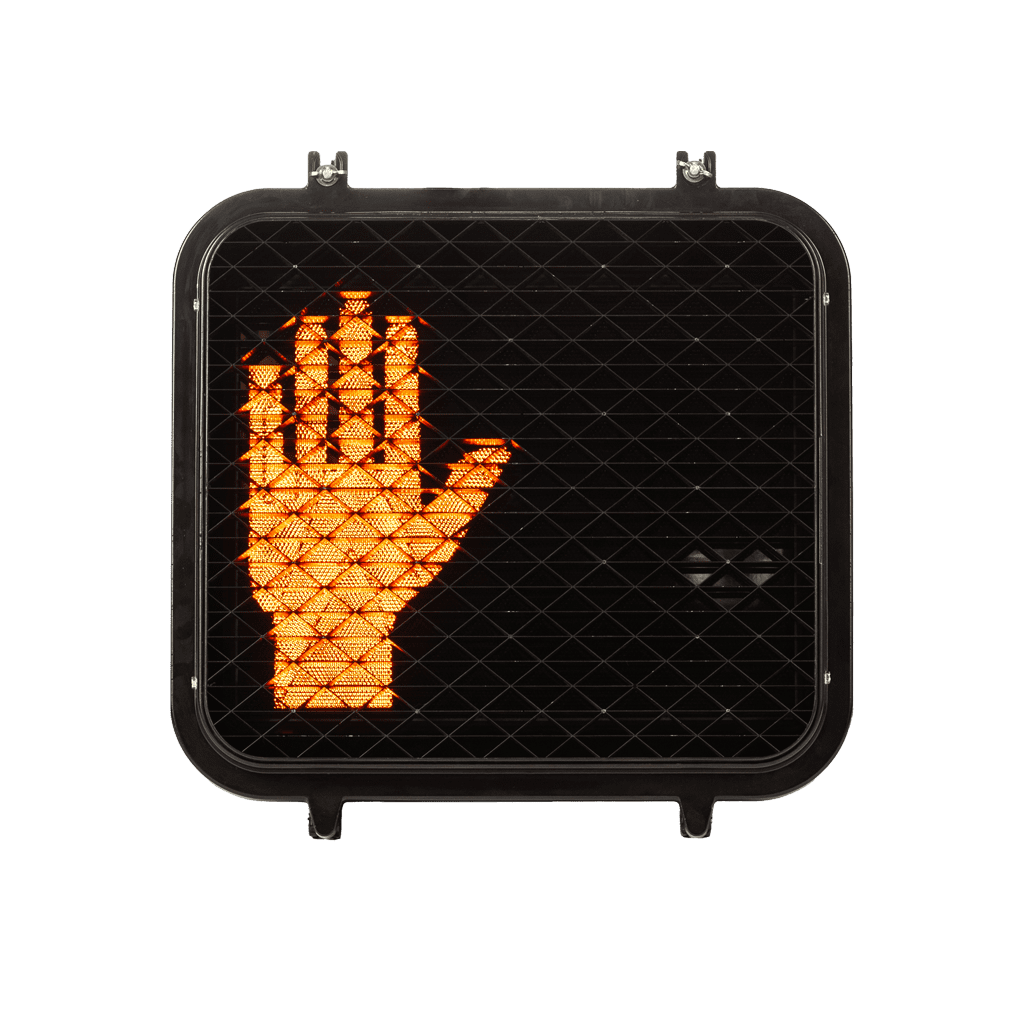

Pedestrian Traffic Signals
When you first look at an Oriux pedestrian signal, you see the mark of experience — backed by over 40 years of building pedestrian signals.
Look even closer, and you’ll discover the quality and durability that have made it our most popular signal ever.
Look even closer, and you’ll discover the quality and durability that have made it our most popular signal ever.
Proven Performance in Pedestrian Signaling
When you see a pedestrian signal from Oriux, you’re seeing the result of over 40 years of engineering expertise and field-tested experience. These signals are built to perform in the most demanding conditions, combining functionality, durability, and ease of installation. Their reliable design and longevity have made Oriux pedestrian signals some of the most trusted in the traffic industry.Built for Quality and Versatility
Oriux pedestrian signals are available in both polycarbonate and aluminum constructions, offering options to suit various environmental and durability requirements. The vandal-resistant design and rugged build ensure long-term service in all weather conditions. Oriux signals are also compatible with multiple mounting systems, including California Type A, B, C, and G, and work seamlessly with Oriux’s patented clamshell mount for quick, clean installations.LED-Ready and Customizable Design
These signals are LED-ready and designed with versatility in mind. Whether you need a full aluminum signal, a polycarbonate body with an aluminum door, or vice versa, Oriux provides fully interchangeable parts to meet your exact needs. You can also choose between the Z-crate visor, which virtually eliminates sun phantom, an open visor, or mix-and-match components to create a custom solution.Durable, Precision-Engineered Housings
Signal housings are available in a range of options including Smooth Top, Shurlock Top, or Ports Cast Closed designs. Each housing—whether aluminum or polycarbonate—includes 72 Shurlock teeth for 5° alignment adjustments and four integrally cast lugs for secure mounting. Housings come standard with a Shurlock boss on the bottom and can be ordered in configurations such as Standard, Drill-Right, Drill-Left, or Maintenance Door Access.Premium Coatings and Color Options
We treat all aluminum components with a five-stage pre-wash and then apply a powder coat electrostatically to enhance durability. Standard color options for housings, visors, and clamshell mounts include Yellow, Black, and Green, with custom colors available upon request. Aluminum doors are powder-coated black for a sleek, weather-resistant finish.Weatherproof Construction and Tool-Free Access
Oriux pedestrian signals are both dust-proof and weatherproof when correctly installed, ensuring dependable operation year-round. The door frame is made of stainless steel and includes stainless steel spring pins for added longevity. The latching system allows doors to be opened or closed without the need for tools, simplifying maintenance and access.Pre-Wired for Easy Integration
Each Oriux LED-ready pedestrian signal includes a pre-mounted aluminum terminal strip with a three-position quick-connect terminal block. This standard feature makes wiring straightforward and speeds up installation in the field.TECHNICAL DETAILS
- Weight: Aluminum: 15 pounds (6.8kg)
- Polycarbonate: 12 pounds (5.5kg)
- Dimensions: 18.75”H × 9.0”D × 18.5”W (476mm × 229mm × 470mm)
- Temperature Range: -4°F to +158°F (-20°C to +70°C)
FEATURES
- Z-Crate Visor: 100% impregnated black polycarbonate plastic with a flat black finish
- Aluminum Door: Pedestrian Traffic Signals have a one piece corrosion resistant aluminum alloy die-cast door, containing two integrally cast hinge lugs and two latch slots
- “Vision” Z-Crate Visor/Door Combo: One piece door and z-crate combination, cast from 100% impregnated black polycarbonate, including two hinge lugs and two latch slots.
- Housing Types: Smooth Top, ShurLok Top, or Ports
- Cast Closed housings are available in both Aluminum and Polycarbonate.
- All types contain 72 teeth on each ShurLok (if applicable) to allow for 5° alignment angles and four integrally cast lugs.
- The housings of all Oriux Pedestrian Traffic Signals have a ShurLok boss on the bottom and can be ordered Standard, Drill-right, Drill-left, or Maintenanced.
