NEMA Cabinet Power Supply$0.00
NEMA Cabinet Power Supply

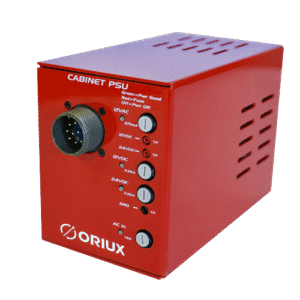

The Oriux NEMA TS2 Cabinet Power Supply is a shelf-mounted unit designed to deliver all the regulated DC and AC voltages required for the operation of Bus Interface Units (BIUs), load switches, and detectors in a TS2 Type 1 cabinet assembly. In addition to powering these primary components, the power supply can also support other auxiliary equipment within the terminal facilities that require similar voltage outputs. This power supply is a requirement of the TS-2 standard for all Type 1 cabinets, and its primary function is to provide 12 VDC, 24 VDC, and 12 VAC outputs, as well as a line frequency reference within TS-2 cabinets.
The flexibility of this cabinet power supply allows for cabinet expansion, enhances reliability, and provides a superior power supply interface with Oriux or other manufacturers’ TS-2 cabinets.
The flexibility of this cabinet power supply allows for cabinet expansion, enhances reliability, and provides a superior power supply interface with Oriux or other manufacturers’ TS-2 cabinets.
Compliance and Core Functionality
This power supply is a mandatory component as specified by the NEMA TS2 standard for all Type 1 traffic signal cabinets. Its primary function is to supply regulated 12 VDC, 24 VDC, and 12 VAC outputs, along with a line frequency reference. These outputs are essential for the proper synchronization and operation of TS2 cabinet systems.Construction and Design
Built with serviceability and durability in mind, the Oriux cabinet power supply features a robust anodized aluminum chassis. The unit is finished with a high-visibility red coating that is both attractive and resilient. The layout and design allow for easy access to all major components, simplifying maintenance and reducing downtime during servicing.Flexibility and Compatibility
The power supply is designed to support modular system expansion, which enhances both the flexibility and reliability of the cabinet’s electrical infrastructure. It offers a standardized power interface compatible not only with Oriux systems but also with other TS2-compliant manufacturers’ equipment, ensuring broad compatibility across various cabinet configurations.Reliable, Standards-Compliant Power for TS2 Traffic Control Systems
The Oriux Cabinet Power Supply is a dependable, versatile unit designed for TS2 traffic control systems. It provides regulated 12 VDC and 24 VDC outputs at 2.0 amps, a 12 VAC output at 0.25 amps. It also provides a 60 Hz line frequency reference for synchronization. Each output is individually fused with LED indicators for quick status checks. Front panel test points simplify diagnostics, while the shelf-mounted design allows easy installation and interchangeability. Fully compliant with NEMA TS 2-2016 standards, it ensures compatibility with modern cabinet systems.SPECIFICATIONS
- Dimensions: 5.125″H × 6.7″W × 7.8″D (130mm × 170mm × 196mm)
- tyle=”color: #0e101a;”>Weight: 2.5 pounds (1.13 kg)
- Test points are provided for all output voltages
- Operating voltage system from 89 to 135 V AC (standard) or 180 to 265 V AC (220 variant)
- Temperature range from -40°F to +176°F (-40°C to +80°C)
- Compatible with NEMA TS-1 12 channel or NEMA TS-2 16 channel
FEATURES</span>
- TS-2 cabinet power supply
- Regulated 12 VDC and 24 VDC voltage-rated at 2.0 Amps
- 12 VAC voltage with 0.25 Amp current capability
- 60 Hz line frequency reference output
- Each voltage output fused and has own LED indicator
- Front panel test points
- Shelf-mounted for modularity and interchangeability
- Compliant with NEMA TS-2-2016
ELECTRICAL OUTPUTS</span>
Four outputs listed below meet the electrical requirements as referenced in Section 5.3.5.3 of the NEMA TS-2-2016 Standard.
- 12 VDC rated at 2 Amps
- 24 VDC rated at 2 Amps
- 12 VAC rated at 250 Amps
- 60 Hz Timing Reference
POWER SUPPLY INPUTS AND OUTPUTS
The power supply connector located on the front panel has a metallic shell that is connected to the chassis ground and mates with an MS3106-18-1SW cable connector or equivalent.
PIN ASSIGNMENTS
- A: AC Neutral
- B: Line Frequency Reference
- C: AC Line
- D: +12 VDC
- E: +24 VDC
- F: Reserved
- G: Logic Ground
- H: Earth Ground
- I: 12 VAC
- J: Reserved
- Over-current protection is provided on the front panel for the AC line power and all output voltages along with LED indicators to indicate the presence of voltage.
