GREENWave Intersection Control Software

GREENWave is Oriux’s world-class, leading local Intersection Control Software included in every Oriux ATC traffic controller and installed in over 30,000 intersections worldwide. It provides users with the flexibility to choose from a variety of hardware configurations for different applications.

Featuring a powerful, Linux-based, multi-process traffic engine and NTCIP communications protocol, GREENWave is easy to program both from the front panel and remotely via one of several NTCIP-based central system software packages, including Oriux’s Spinnaker ATMS. It also includes a web interface for remote wireless access.

Oriux’s Advanced Intersection Software

GREENWave is Oriux’s world-class, leading local Intersection Control Software included in every Oriux ATC traffic controller. Installed in over 30,000 intersections worldwide, GREENWave offers users the flexibility to work with a variety of hardware configurations tailored to different traffic applications.

Powerful Technology and Easy Programming

Featuring a powerful Linux-based multi-process traffic engine and supporting the NTCIP communications protocol, GREENWave is both robust and user-friendly. It can be programmed easily from the controller’s front panel or remotely via several NTCIP-based central system software packages. This includes Oriux’s own Spinnaker ATMS. Additionally, a web interface enables remote wireless access for convenient management.

Advanced Transit Signal Priority and Preemption Features

GREENWave boasts the most advanced Transit Signal Priority (TSP) and Light Rail preemption algorithms available on the market for Intersection Control Software. It provides more options for adjusting signal operation, the fastest recovery to coordination, support for 32 preemption inputs, and peer-to-peer logic, enabling highly efficient traffic control in complex environments.

Comprehensive TSP Logging and Performance Insights

The software’s powerful TSP logging capabilities offer transit agencies clear insights into how TSP events affect general traffic flow. This data helps agencies measure, track, and continuously improve the performance of their transit signal priority systems.

FEATURES

  • This Intersection Control Software is Linux-based multi-process traffic engine
  • Fully NTCIP compliant
  • Embedded Web Server, allowing authorized users to remotely access and configure the controller through any mobile device
  • The most Advanced Transit Signal Priority and Light Rail preemption algorithms in the market.
  • High-density Logging, gathering data from all inputs and outputs in the controller on a 1/10th second basis.
  • Specialty TSP logs, providing Transit agencies with data to measure, track, and improve TSP performance.
  • Traffic Engine Recording, providing users the ability to record the operation of the traffic engine for troubleshooting problems
  • Peer to Peer communications, allowing information to be sent directly from one controller to another
  • Critical Intersection Control, allowing the cycle optimizer to add 4, 8 or 16 seconds to the cycle if the intersection is saturated
  • Advance Scripter, allows custom applications to be created without writing new software
  • Dual Traffic Engine, Phase-based and Interval-based operation in a single unit – The ONLY controller in the world with this capability
  • The Oriux GreenWave Intersection Control Software Supports transitions between phase-based and interval based operation with no need to restart the controller, merely by switching between pattern
You may also be interested in

Advanced Traffic Controller ATC-1000

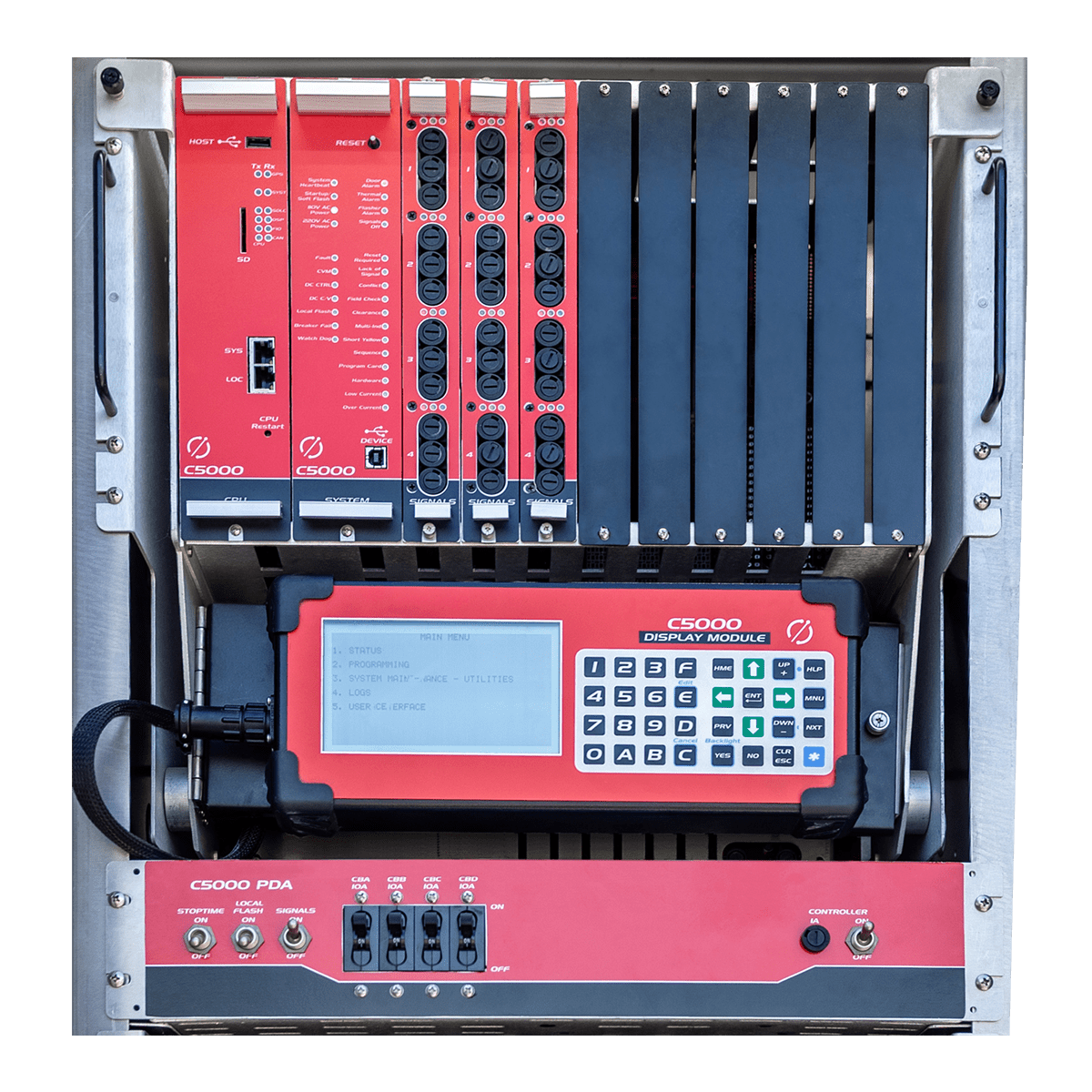

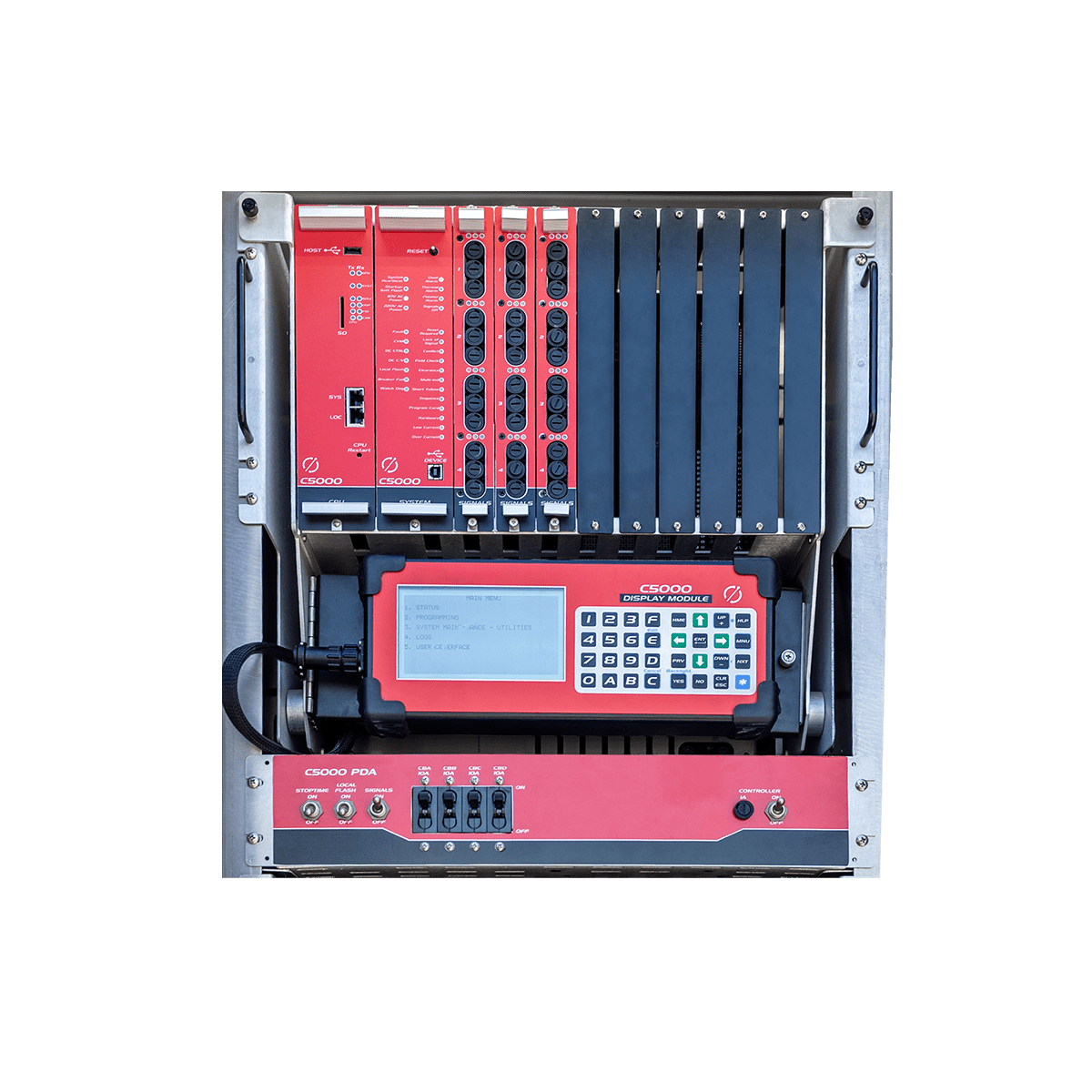

C5000 ATC
