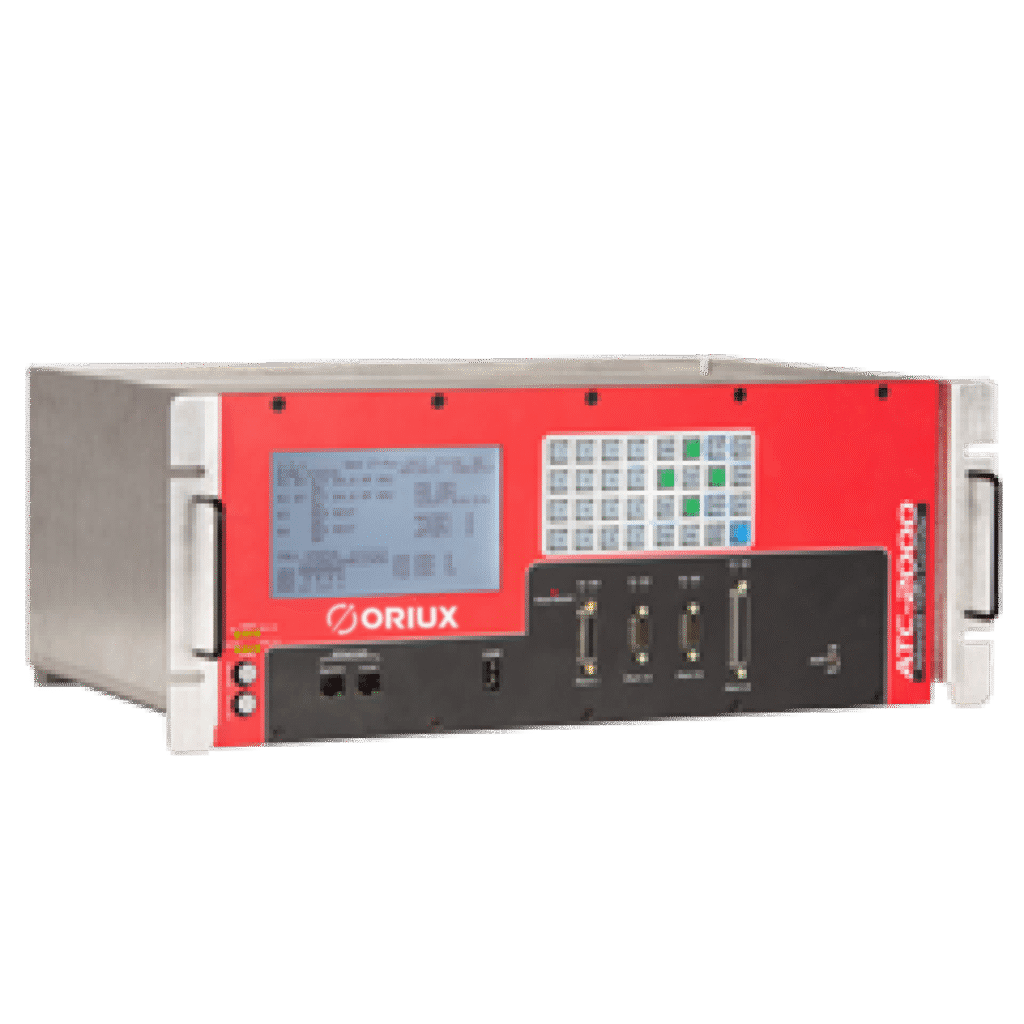

Advanced Traffic Controller ATC-2000
The ATC-2000 is the rack-mounted version of Oriux’s ATC controller. Designed for modularity and compliance with the widest range of traffic controller standards worldwide, it prioritizes ease of use and adaptability.
The ATC-2000 traffic controller features Oriux’s latest ATC engine board and a full range of communication options—including multiple serial ports, multiple Ethernet ports, multiple USB ports, and various I/O options. It retains all the capabilities of the Oriux ATC-1000 controller while ensuring compatibility with standard cabinet racks.
The ATC-2000 traffic controller features Oriux’s latest ATC engine board and a full range of communication options—including multiple serial ports, multiple Ethernet ports, multiple USB ports, and various I/O options. It retains all the capabilities of the Oriux ATC-1000 controller while ensuring compatibility with standard cabinet racks.
ATC-2000 Controller
The ATC-2000 is the rack-mounted version of Oriux’s ATC controller, designed to be modular and compatible with the widest range of traffic controller standards worldwide. It emphasizes ease of use and adaptability, making it an ideal solution for diverse traffic management needs.Advanced Hardware and Connectivity
This controller features Oriux’s latest ATC engine board and offers a comprehensive suite of communication options, including multiple serial ports, Ethernet ports, USB ports, and a variety of input/output configurations. It builds on the capabilities of the ATC-1000, packaged into a form factor compatible with standard cabinet racks.Compact and Versatile Form Factor
Measuring just 4 inches in height and 17 inches in width (43.2 cm), with 19-inch wide mounting brackets (28.3 cm), the ATC-2000 fits a variety of standard cabinet styles. It is compatible with CalTrans 330 cabinets as well as Oriux’s ASTC-12 Central Business District cabinet, which has been successfully deployed in cities like New York, San Salvador, and Ecuador.Flexible Programming Options
The ATC-2000 can be fully programmed through multiple methods: directly from the front panel, via USB data downloads, ATC Link® direct connections, or through Oriux’s central systems, IQ Central and Spinnaker, using serial or Ethernet connections. This versatility allows for seamless integration in various traffic control environments.Innovative Traffic Engine Capabilities
Uniquely, Oriux’s ATC controllers incorporate both interval-based and phase-based (NEMA) traffic engines running side-by-side. The ATC-2000 allows users to switch between these two modes on the fly, with only a brief, programmable pause during Red Rest operation, providing unmatched flexibility.Compatibility and Future-Ready Design
This Oriux controller supports NTCIP communications protocols. It is also fully compatible with Spinnaker traffic management systems as well as other NTCIP-based platforms. Powered by a 300MHz Freescale Power Quix 2 processor, it includes easy firmware update capabilities, ensuring it remains current with the latest Intelligent Transportation System (ITS) management schemes and algorithms.Display and User Interface
The ATC-2000 features a 40-character by 16-line backlit LCD, designed for clear visibility. An optional heater is available to ensure reliable operation in cold environments. The controller also includes a 32-key soft-touch keypad, providing an intuitive and user-friendly interface for front-panel programming.Operating System and Memory Management
Powered by a Linux operating system, the controller benefits from advanced memory management that enables process isolation. This architecture enhances system stability and security by preventing interference between running applications.Communication and Connectivity
The ATC-2000 is compliant with NTCIP standards 1201 and 1202, ensuring seamless communication and integration with traffic management systems. It includes an ATC 5201 modem slot for communication expansion. Additionally, it includes four independent 100 Base-T Ethernet ports that provide robust and reliable network connectivity. Additionally, two high-speed USB ports are available to support external devices and data transfer.Protocol Support
This controller supports a wide range of NTCIP communication protocols, making it fully compatible with popular central management software such as Oriux’s Spinnaker, TranSuite, and MIST. This ensures flexible and efficient control in various traffic environments.TECHNICAL DETAILS
- At 4″ in height and 17″ width (43.2 cm), with 19″ wide mounting brackets (28.3 cm), the Advanced Traffic Controller ATC-2000 will fit into a variety of standard cabinet styles,
CalTrans 330 and also Oriux’s own ASTC-12 Central Business - District cabinet, the enclosure used so successfully throughout New York, San Salvador, and Ecuador.
COMMUNICATIONS
- Connectivity is easily achieved using a variety of communication options:
- 5 serial ports; RS 485 support on one port (jumper selectable)
- Two 10/100 Base-T Ethernet ports
- 3000E compatible modem slot
- Optional 2070 compatible modem slot with full modem control support
- High-speed USB port
COMPUTER INTERFACING
- Intersection configuration programming interfacing is easily performed in the field, using the provided laptop computer interface software (ATC Link). ATC Link can be connected directly via either an Ethernet or a serial cable, or it can be used to store the configuration on a portable USB “flash drive”, which can then be downloaded to the device in the field in seconds. Or programming may be downloaded across a network via an NTCIP-compliant central system, such as Spinnaker.
FEATURES
- 40-character x 16-line Backlit LCD Display with optional heater
- This Advanced Traffic Controller uses a Linux Operating System with memory management for process isolation
- Compliant with NTCIP 1201, 1202
- ATC 5201 Modem Slot
- 300MHz Freescale Power Quix 2 processor
- Four independent 100 Base-T Ethernet ports
- Two high speed USB port
- 32-key soft-touch keypad for front panel programming
- NTCIP protocol-Spinnaker, TranSuite & MIST Central Software
