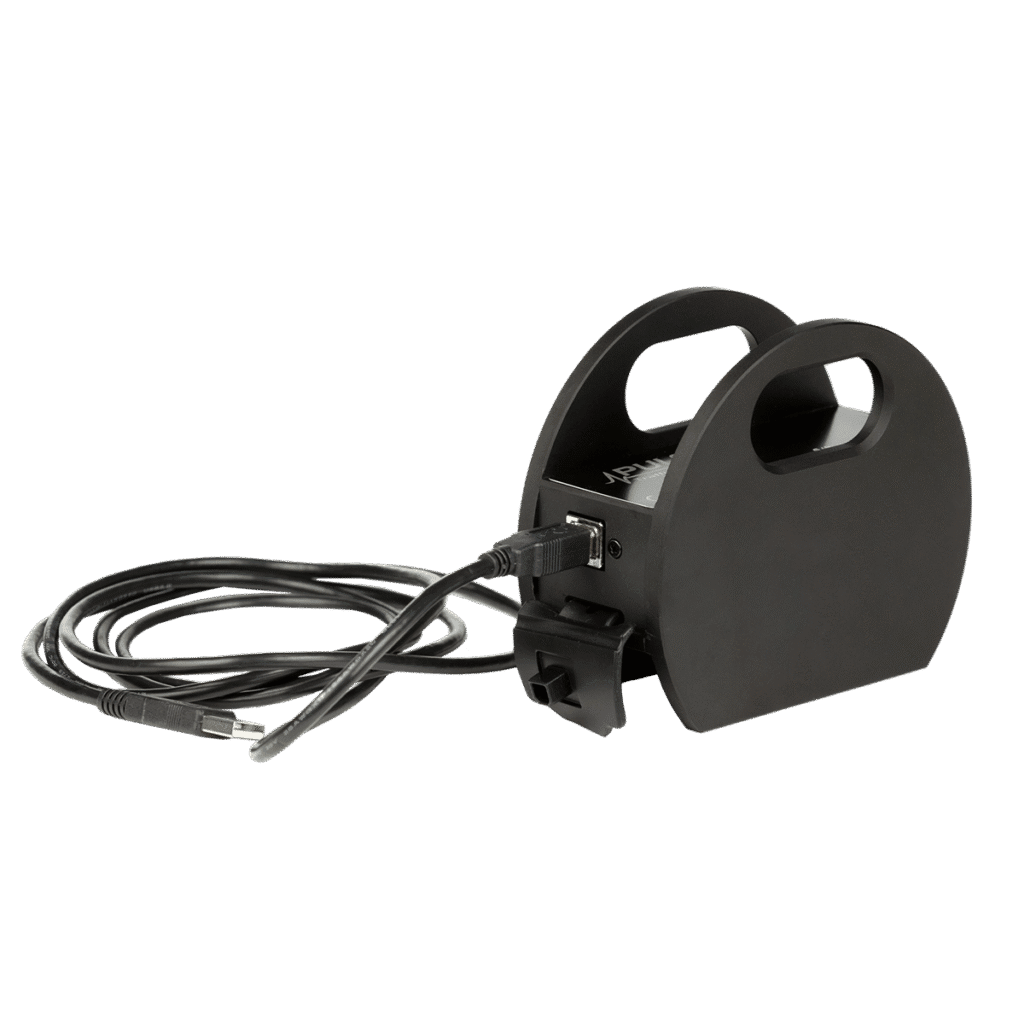

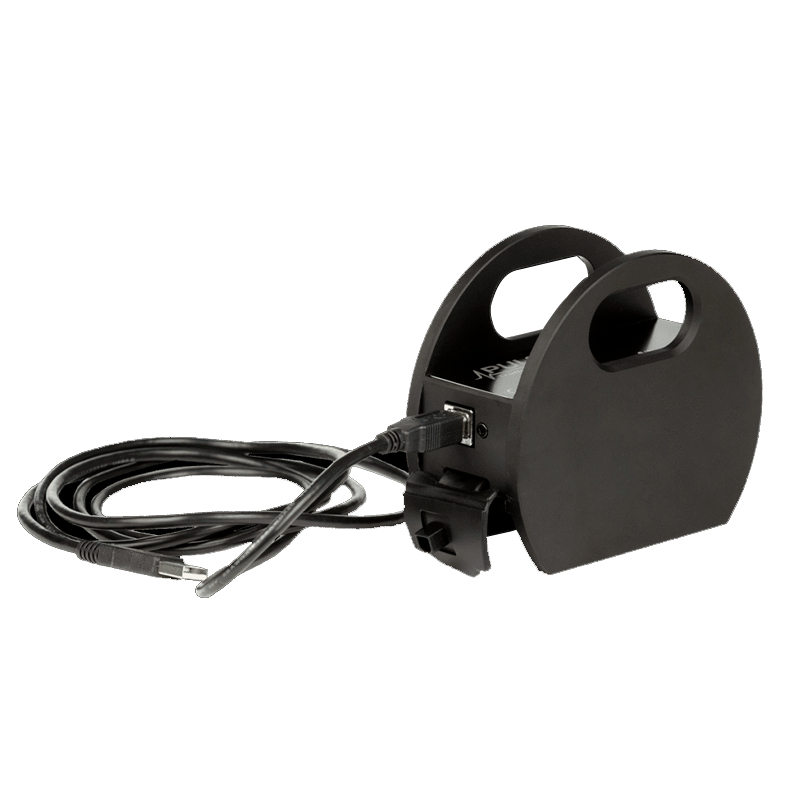

ADR Pulsar
Pulsar is the latest portable traffic data recorder from Oriux, an industry leader for decades. The Oriux pedigree guarantees that Pulsar will deliver years of reliable, highly accurate performance. Pulsar’s reliability is achieved by combining a rugged, lightweight, single-piece aluminum housing with encapsulated electronics and a lithium battery. The advanced electronics, coupled with a highly refined data processing algorithm, enable study accuracy comparable to the Oriux ADR1000, the ‘workhorse’ of the traffic industry.
Rugged, Portable Traffic Data Recorder
The Oriux ADR Pulsar is the latest addition to Oriux’s line of portable traffic data recorders. It builds on decades of industry leadership and innovation. Designed for durability, accuracy, as well as ease of use, Pulsar combines rugged construction with advanced technology to deliver years of dependable performance in the field. Encased in a lightweight, single-piece aluminum housing, Pulsar features encapsulated electronics and a long-life lithium battery, ensuring resilience under demanding conditions and offering a minimum of 5 years of operation without recharging.Accurate Data Collection
At the core of the ADR Pulsar is an advanced data processing algorithm, refined to deliver study accuracy that rivals the renowned Oriux ADR-1000. Furthermore, it is widely regarded as the “workhorse” of the traffic monitoring industry. Pulsar collects time-stamped event data with precision, thus enabling the generation of reliable traffic studies based on volume, classification, and speed.Designed for Ease of Use
ADR Pulsar is engineered with field usability in mind. Its custom-designed tube nozzles securely accept both standard and mini road tubes. In contrast, the generous spacing around the nozzle area makes installation and removal quick and easy—even with gloves or tools. This thoughtful design reduces setup time and simplifies roadside deployment.Seamless USB Connectivity
A built-in USB port allows for straightforward communication with Windows-based PCs using any standard USB cable. Through this connection, users can:- Transfer collected traffic study data;
- Perform device setup;
- Monitor Pulsar’s operation.
Powerful and User-Friendly Software
Collected data is stored as time-stamped events within the compact Pulsar device. Oriux’s Pulsar Reporter software processes this data to generate a variety of traffic studies, including vehicle volume, axle-based classification, and speed analysis. This capability makes Pulsar an excellent choice for road tube-based studies that require high accuracy without the complexity or cost of more elaborate systems.The Smart Choice for Traffic Studies
If you need a portable, accurate, and easy-to-use solution for vehicle data collection, the Oriux Pulsar offers a cost-effective alternative without compromising performance. It’s ideal for agencies and consultants conducting temporary traffic counts or classification surveys with the reliability that only Oriux can provide.Enhanced Field Capability with Street-Link
The USB port on the Oriux Pulsar is also compatible with Oriux’s Street-Link, an optional rugged, handheld accessory designed specifically for field use. With its intuitive interface and durable construction, Street-Link makes on-site operations faster and easier. Technicians can quickly monitor road tube functionality, check Pulsar memory and battery levels, and—thanks to the built-in GPS—access Google Maps directly, load GPS coordinates, and synchronize GPS time to the Pulsar at each study location with the push of a single button. This functionality is especially helpful for maintaining organized and geo-referenced traffic study records. The Pulsar is compatible with the optional Oriux Street-Link accessory, which facilitates:- One-button synchronization to GPS location as well as time,
- Easy in-field monitoring of vehicle detection via road tubes,
- Quick battery and memory checks in the field.
Pulsar Reporter Software: Simple, Smart, and Powerful
The Pulsar Reporter Software, included free with the device, was developed to streamline the post-processing of traffic study data. Whether conducting a basic single-tube volume study or a more complex two-tube classification and speed study, the software guides users through the report setup with just a few simple parameters. Pulsar Reporter takes care of the rest, automatically generating the appropriate reports with professional formatting. It also allows users to select and extract subsets of stored data, creating unique study files tailored to specific needs. The Pulsar Reporter software is PC-based and compatible with Windows 7 and later versions. It features a simple, intuitive graphical user interface designed to make operation straightforward for users of all experience levels.Precision Data Recording
The Pulsar records time-stamped event data, such as wheel strikes on road tubes, with a processing precision of 30.5 microseconds. It supports one or two road tube inputs using custom “stepped diameter,” barbless nozzles that securely accept standard 3/16” ID, ¼” ID, or mini road tubes. The generous spacing around the nozzles facilitates easy installation as well as removal, even while wearing gloves or using tools. The device supports tube spacing as close as 2 feet. Pulsar Reporter offers a suite of useful features designed to enhance both data interpretation as well as presentation:- Custom graphing tools for visualizing traffic patterns;
- Detailed “per vehicle” listings for in-depth analysis;
- Support for importing custom images to personalize report headers.
Memory and Data Capacity
Equipped with fully encapsulated electronics, the Pulsar can store event data for over 1 million vehicles. The memory is erasable and reusable with no limit on the number of traffic studies stored simultaneously. This allows for unlimited use without requiring additional hardware upgrades.Power and Security Features
For security, the device includes two large (2-inch long) oval openings. They are designed to accommodate chains, cables, or locks (sold separately), allowing the unit to be securely fastened during field deployments.Classification Schemes
Vehicle classification follows the FHWA Scheme “F” by default. In addition, users can also choose from user-selectable classification schemes to fit project requirements.Compact, Capable, and Accurate
Whether you’re seeking a lightweight solution for accurate vehicle classification and speed studies or need a more advanced alternative to basic tally counters, the Oriux ADR Pulsar delivers. Its combination of robust hardware, user-friendly software, and compatibility with field tools like Street-Link makes it the ideal choice for agencies and contractors looking for high performance in a compact, affordable package.HARDWARE
-
-
- The ADR Pulsar records time-stamped, event data (e.g. wheel strikes on road tubes)
- Compatible with optional Oriux Street-Link for:
– “One-button sync” to GPS location and time
– Easy in-field monitoring of vehicle detection by road tubes
– Performing quick check of Pulsar battery and memory
• Rugged, black anodized, single-piece aluminum housing with
~¼” thick walls - Dimensions: 5” x 4.2” x 2.2” (12.7cm x 10.7cm x 5.6cm)
<l
-
i>Weight: 1.7 pounds (771 grams)
- Operating Temperature Range: -40F to 185F (-40C to +85C)
- Inputs: one or two road tubes:
– Custom, “stepped diameter,” barbless road tube nozzles:
– Easily & securely accepts standar
-
- d 3/16″ ID, ¼” ID or mini-road tubes
-
- =””>=”yoast-text-mark”>=”list-style-type: none;”>
- – Generou
s space around nozzles allows easy road tube mounting and removal
- =””>=”yoast-text-mark”>=”list-style-type: none;”>
- – Supports spacing between road tubes to as small as 2 feet.
- Electronics:
– Fully encapsulated
– Memory:
– Store events for more than 1 million vehicles.
– Memory can be erased for “unlimited” re-use
– “No limit” on the number of studies stored by a unit at one time
– Processing precision: 30.5 microseconds - Communications: USB standard B type connector, sealed, washable, gold plated contacts
– Compatible with, low cost, commonly available USB cable (sold separately)
– Up to 12 Mbps communications speed enables transfer of data for typical traffic study in seconds
– Custom molded, attached rubber seal; “instant” open & seal without tool or key</li> - Power: 5 years minimum operation encapsulated lithium battery – no re-charging
- Security: two extra-large (2-inch long) oval openings allow easy use with chains, cables, and locks (security cables and locks are sold separately).
yle=”font-family: Verdana, sans-serif; color: #de2923;”>SOFTWARE
- PC-based compatibility for Windows 7 and above
- The ADR Pulsar from Oriux offers simple to use, intuitive, graphical user interface
- User-selectable study type, and report options including time & date range
- User-selectable reports for vehicle volume, classification, speed, and PVR depending on available data
- Ability to re-run data to produce new studies
- Advanced algorithms provide excellent data accuracy for typical road types and traffic conditions
- Graphics output capability
- Export data to other software using any of more than 10 formats including PDF, XLS, CSV, Oriux PRN
- GPS data, when loaded into Pulsar by the optional Street-Link, enables access to Google Maps to verify the study location</li>
- Import images into reports for customized headings
- Monitor the operation of road tubes in real-time using a PC connected to Pulsar
- May be used to choose and ext
- ract a subset of stored data to create a unique study file
- FHWA Scheme F vehicle classification or user selectable class scheme Pulsar Reporter software is provided with Pulsar purchase
